How to build a network statistics panel in a live video call

When building software, we as developers often focus on the “happy path” through an app’s UI. The happy path refers to the intended path a user takes through an app with the predicted outcome. In other words, the user does what we think they will, and the app responds how we want it to. If only that were the only path!

The other side of building software is when things don’t go as planned. We know that even the most reliable software needs to handle less-than-ideal situations. Poor network conditions, for example, can negatively impact a user’s experience of an app or even prevent them from being able to use it. In a video call app, it can cause an increase in latency, which makes the video lag or freeze. And even for the calmest person, a laggy video call can be a horribly frustrating experience.

In this post, we’ll cover how to help video call participants understand when their network conditions are the culprit for video call issues. Primarily, we’ll look at:

• How you can update your video call UI to help users know what their network’s status is.
• How Daily handles poor internet connections in our Daily Prebuilt video component’s design.
• What the daily-js and react-native-daily-js getNetworkStats() method is and what data it returns.
• How to build features similar to Daily Prebuilt’s using the getNetworkStats() method.

This post will be an overview of how to approach these topics, rather than a coding tutorial.

Video call features to improve user experience during a poor internet connection

An important part of app UI (user interface) design is clearly communicating information that the user might find helpful. In a video call, if there’s a delay in the audio or video being sent, the call participant might wonder, “Is this app broken? Is there a setting I can change? Is it my internet? Do I have too many apps open?” Ultimately, they’ll want to know, “Is there something I can do to fix this?”

When poor network conditions is the problem, there are two main ways to help your users:

1. Let them know the issue is caused by their network connection (issues with either packet loss or low available bandwidth).
2. Provide some options for what they can do to help improve the video call experience given the circumstances.

Let’s look at the first point: communicating the problem.

How Daily communicates network issues in video calls

Daily offers several SDKs and tools for developers building their own video call software, but we’re also our own customer. The Daily Prebuilt video call component can be embedded into any web page in just a few lines of code. It is also a useful example of how we recommend handling common video call features.

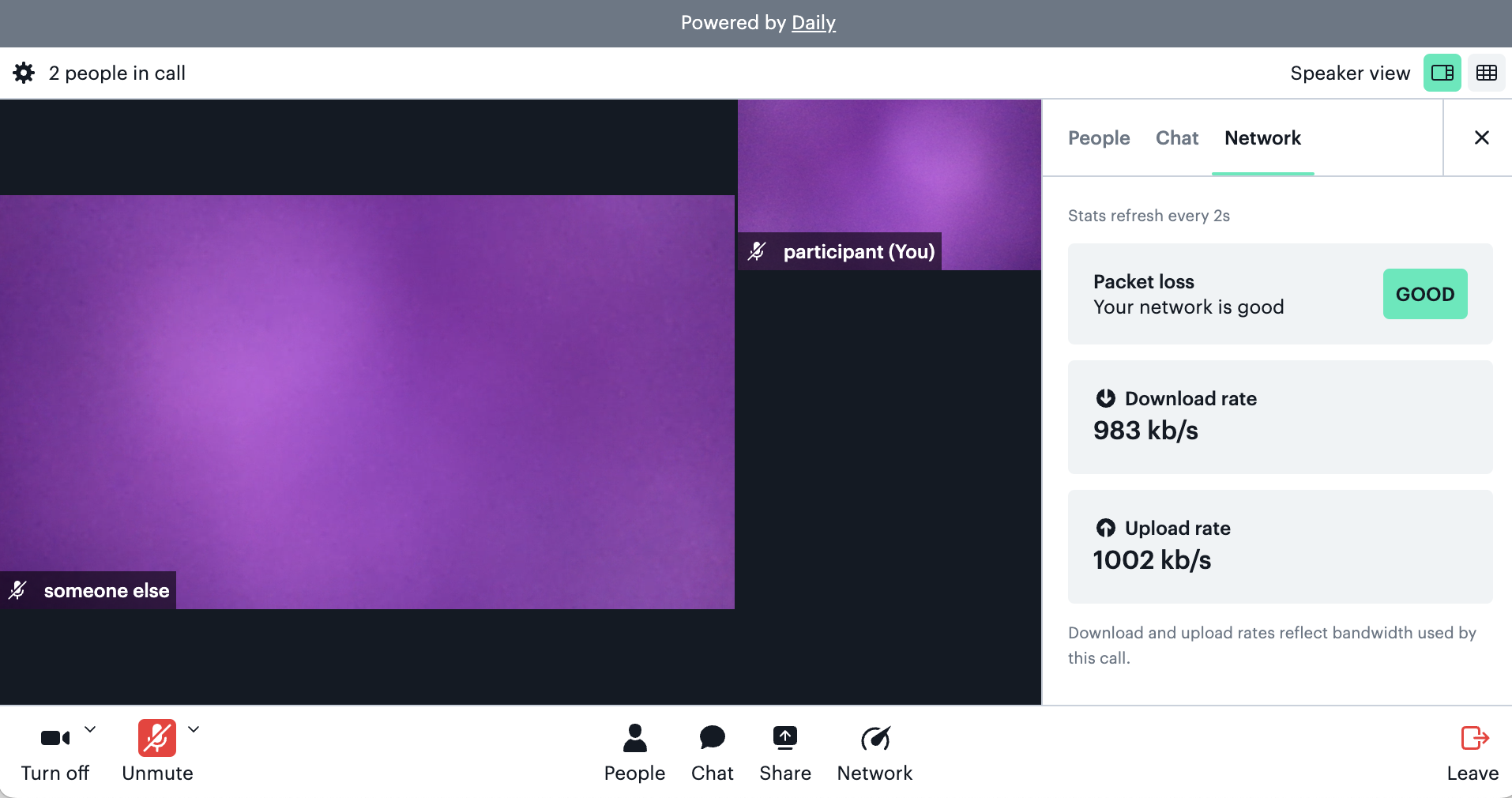

One tool Daily Prebuilt’s UI offers is an optional Network panel. This can be turned on for any Daily room in the Daily dashboard or with the enable_network_ui option when creating or editing a Daily room with the REST API.

When turned on (it’s off by default!), the Network panel is made available in Daily Prebuilt calls for that room.

This allows us to communicate the information we have in our API to the call participant who might be trying to understand what’s going on if a video call starts lagging. They can check for packet loss, as well as the current download and upload rate. If the packet loss is bad (i.e., if it’s high), the call quality will worsen. In extreme cases, the call will look like it’s frozen.

Communicating this information helps the call participant know if their network is the issue or at least rule it out as the culprit.

Daily provides all of the information seen in the Network panel with our own public APIs. This specific information is made available by the getNetworkStats() method available in Daily’s JavaScript SDKs. (More on this method below.)

Now that we’ve seen an example of communicating network issues with users, let’s look at how we can help them resolve the issues so they don’t just give up on the video call.

Providing users with actions to improve network issues

Video can be a pretty costly feature in terms of app performance. When a person is in a call and having network issues, we want to help them improve their situation without having to cancel their call. One main way we can do this is by encouraging users to temporarily turn off their video when network conditions are poor. This will allow the call to continue with audio until the connection improves.

It can be difficult at first to know what the issue is when your network conditions change. It could be a temporary lull that resolves itself, or it could be something where the call participant could take action to improve the issue. As an example of the latter, if you’re on a sketchy WiFi connection and want to tether to your phone instead, you can turn your video off until that better network connection is available.

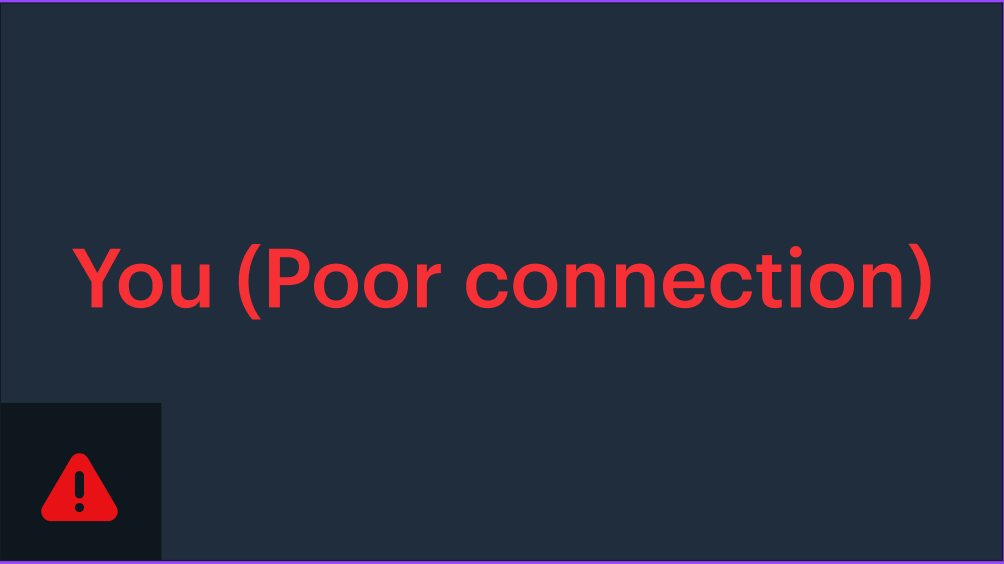

Knowing the root issue can vary, Daily Prebuilt handles these network issues gracefully by managing your video for you. When the connection is too poor to have an enjoyable video call experience, Daily Prebuilt will temporarily turn off your video and display a warning sign to let you know about the issue. The call can continue with your audio and the video/audio of any other participants in the call.

This small change in the call allows call participants to continue speaking seamlessly, instead of the call going into a state where no one can hear or see each other.

Using Daily’s getNetworkStats() method to handle variable network conditions
Now that we know why it can be good to communicate network condition data and how to help maintain a positive video call user experience in poor conditions, let’s see how to actually accomplish these goals with Daily’s client SDKs for JavaScript and React Native.

Daily provides an instance method in both daily-js and react-native-daily-js called getNetworkStats().

This method is available on the main call object and usable after the participant joins a call. It will return the current network stats for the local participant and is invoked as follows:

callObject.getNetworkStats()

First, let’s look at an example response object to see what information is returned to us:

{
  "stats": {
    "latest": {
      "recvBitsPerSecond": 1178543.4568373028,
      "sendBitsPerSecond": 1082780.0045457026,
      "timestamp": 1620311506953,
      "videoRecvBitsPerSecond": 1028897.7824626606,
      "videoRecvPacketLoss": 0,
      "videoSendBitsPerSecond": 987321.7967671315,
      "videoSendPacketLoss": 0,
“totalSendPacketLoss”: 0,“totalRecvPacketLoss”: 0,
    },
    "worstVideoRecvPacketLoss": 0.008333333333333333,
    "worstVideoSendPacketLoss": 0
  }
  "threshold": "good",
  "quality": 100
}

Here is that information again but with each key defined:

  "stats": {
    "latest": {
      "recvBitsPerSecond": 0, // total data from video and/or audio being received in bits per second
      "sendBitsPerSecond": 0, // total data from video and/or audio being sent in bits per second
      "timestamp": 0, // a unix timestamp (seconds since the epoch)
      "videoRecvBitsPerSecond": 0, // total data from video being received in bits per second
      "videoRecvPacketLoss": 0, // estimated data lost from the received video over a two second period
      "videoSendBitsPerSecond": 0, // total data from video being sent in bits per second
      "videoSendPacketLoss": 0 // estimated data lost from the video being sent over a two second period
	“totalSendPacketLoss”: 0, // estimated data lost from the audio and video being sent over a two second period
“totalRecvPacketLoss”: 0, // estimated data lost from the received audio and video over a two second period

    },
    "worstVideoRecvPacketLoss": 0, // the highest videoRecvPacketLoss number seen over a two second period during the call
    "worstVideoSendPacketLoss": 0 // highest videoSendPacketLoss number seen over a two second period during the call
  }
  "threshold": "good", // an assessment of the current network quality
  "quality": 100 // a subjective calculation (by our expert engineers) of the current network quality on a scale of 1-100
}

The threshold value, for example, is one value we show in the Network panel.

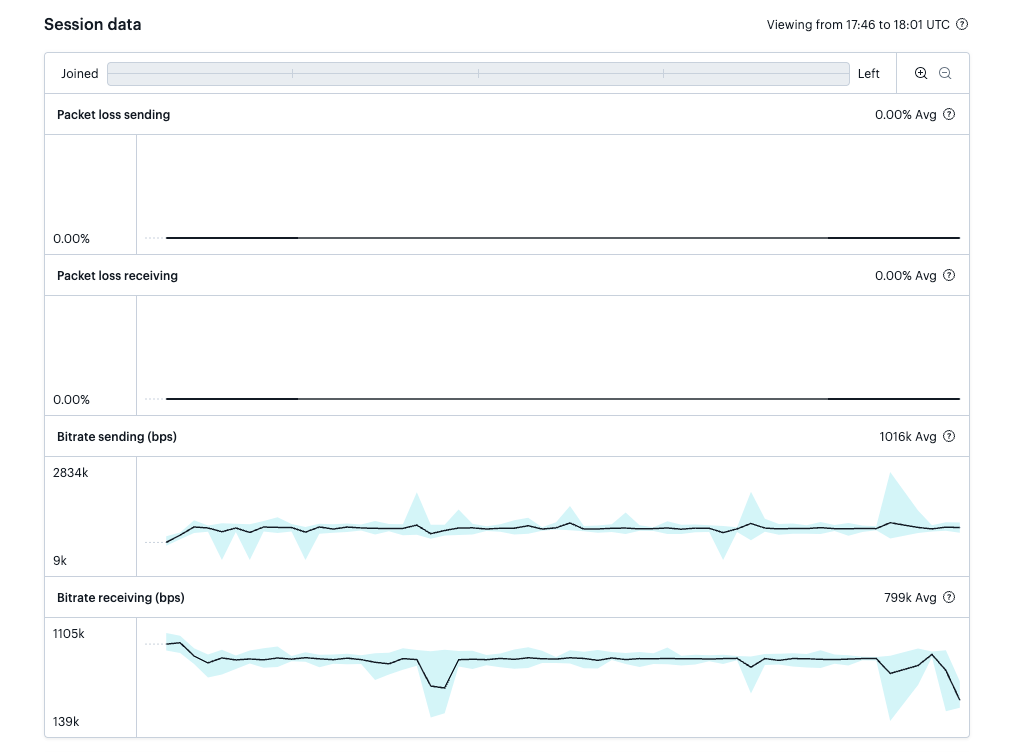

With these values, you can build any interface you think would help your video call participants. It could be a panel like the one in Daily Prebuilt or even a live graph of network changes over time. The graphs in the Daily dashboard are an example of how this could look. Graphs similar to the dashboard’s could be built using the /logs endpoint, rather than getNetworkStats(). (Note: You need to use the /logs endpoint over getNetworkStats() any time you’re trying to retrieve session data after the call has ended.)

A basic code example polling getNetworkStats()

Since network conditions change over time, it is most common to poll the getNetworkStats() method every 15 seconds or so.
As a final step, let’s look at a basic example of how you could poll getNetworkStats() while in a Daily video call.

// Create an HTML element that can be used as a container before running this block of JS
const targetEl = document.getElementById('callframe');
const callframe = DailyIframe.createFrame(
  targetEl,
);
callframe.join({url: room_url});

// Start with an empty array to store network stats over time.
const statsArray = [];

const getStats = async () => {
	const currentStats = await callframe.getNetworkStats();

	// Add stats to stats array after the promise resolves
	statsArray.push(currentStats);
}
// Start interval for fetching stats that will run every 15 seconds until you leave the call
const interval = setInterval(() => getStats(), 15000);

Once the interval is initialized, getNetworkStats() will be called every 15 seconds, and the results will be added to statsArray. As the array is added to, you can decide how to display that data to your customers, such as a graph or Network panel that regularly updates itself.

Conclusion

In this post, we went through how to use Daily’s getNetworkStats() call object instance method to display network data to call participants. To learn more, read our call quality guide and infrastructure blog posts. To see a demo example of getNetworkStats(), try our Daily Prebuilt demo app.
